Description

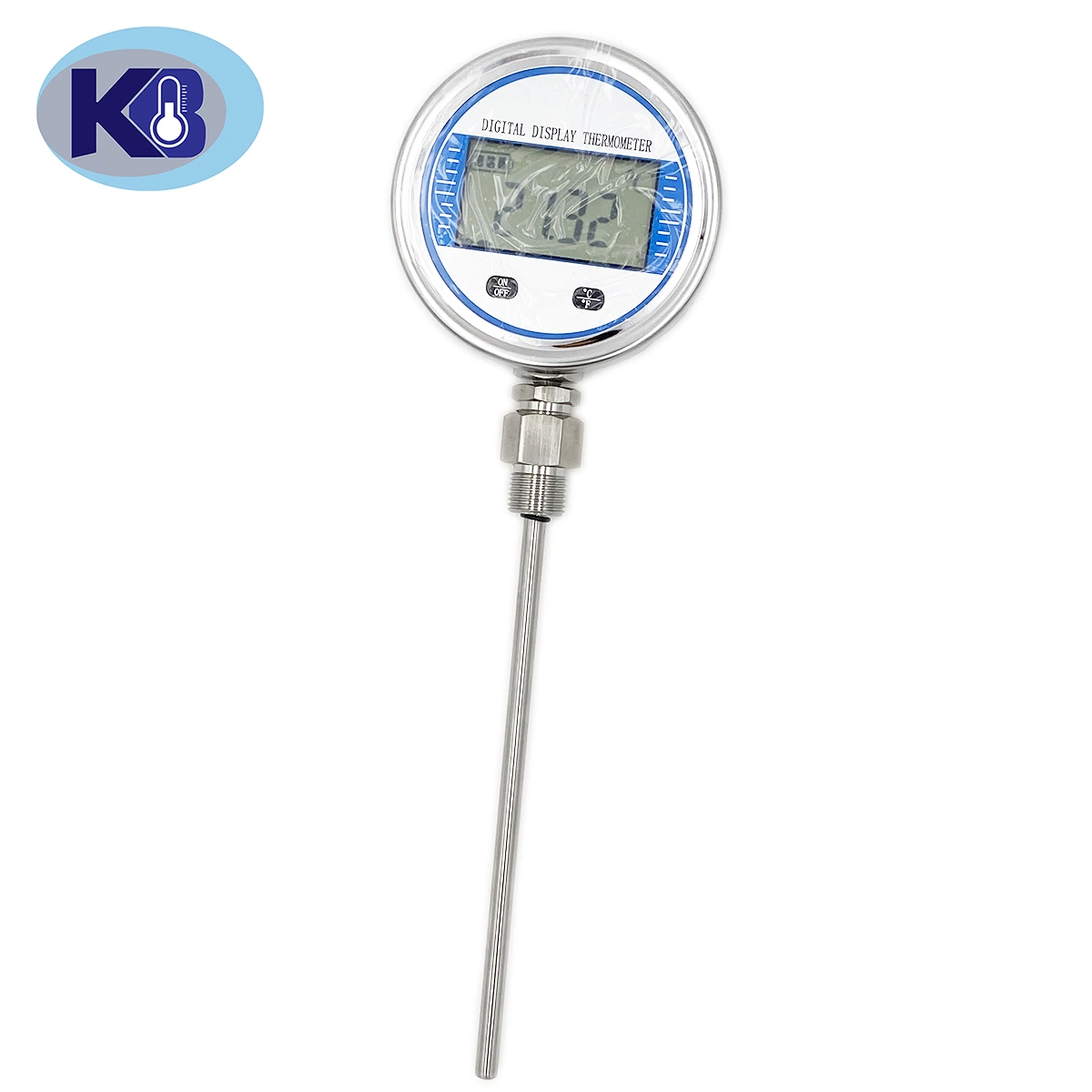

Digital temperature gauge is designed with whole electronic structure, it uses 3.6V high performance lithium battery as power supply. The display is 5-digit LCD, with high resolution and no reading error. With Pt100 resistor as sensing element, it can measure and display the medium temperature precisely. The installation is very easy and simple.
Features
> Big screen LCD display, dial 100mm, high resolution.
>Temperature percentage dynamic demonstration (progress strip demonstration)
>1~15min automatic turn-off function
> Micro power loss function, can work above 2 years in the electricity saving pattern
> back light design, can see the reading easily in the dark.
> 5 selectable engineering units:ºC,F,K,Ra,Re
> keep peak value function, can record the max temperature reading during process
> sampling speed: 1time/sec.
Specifications
Temperature range | -55ºC~500ºC |
measuring medium | gas or liquid compatible to stainless steel |
accuracy | 0.2%,0.5% |
temperature sensor type | Pt100 |
long-term stability | ≤0.1% /year |
battery power supply | 3.6V battery |
LCD display | 4-digit |
Display range | -1999~9999 |
Ambient temperature | -20ºC~70ºC |
Relative humidity | ≤80% |
display unit | ºC,F,K,Ra,Re |
Process connection | G1/2 or others |
sampling speed | 1time/sec. |
housing material | 304SS |
material of wetted part | 304ss |
Insert stem diameter | 8mm(standard) |
Q1. When can I get the quotation?
We usually quote within 24 hours after we get your inquiry. If you are urgent to get the price, please send the message on skype and wechat or call us directly.
Q2. How can I get a sample to check your quality?
After price confirmed, you can requiry for samples to check quality.
If you need the samples, we will charge for the sample cost. But the sample cost can be refundable when your quantity of first order is above the MOQ
Q3. Can you do OEM for us?
Yes, the product packing can be designed as you want.
Q4. How about MOQ?
1 pcs for carton box.
Q5. What is your main market?
Eastern Europe, Southeast Asia, South America.
Please feel free to contact us if you have any question.
