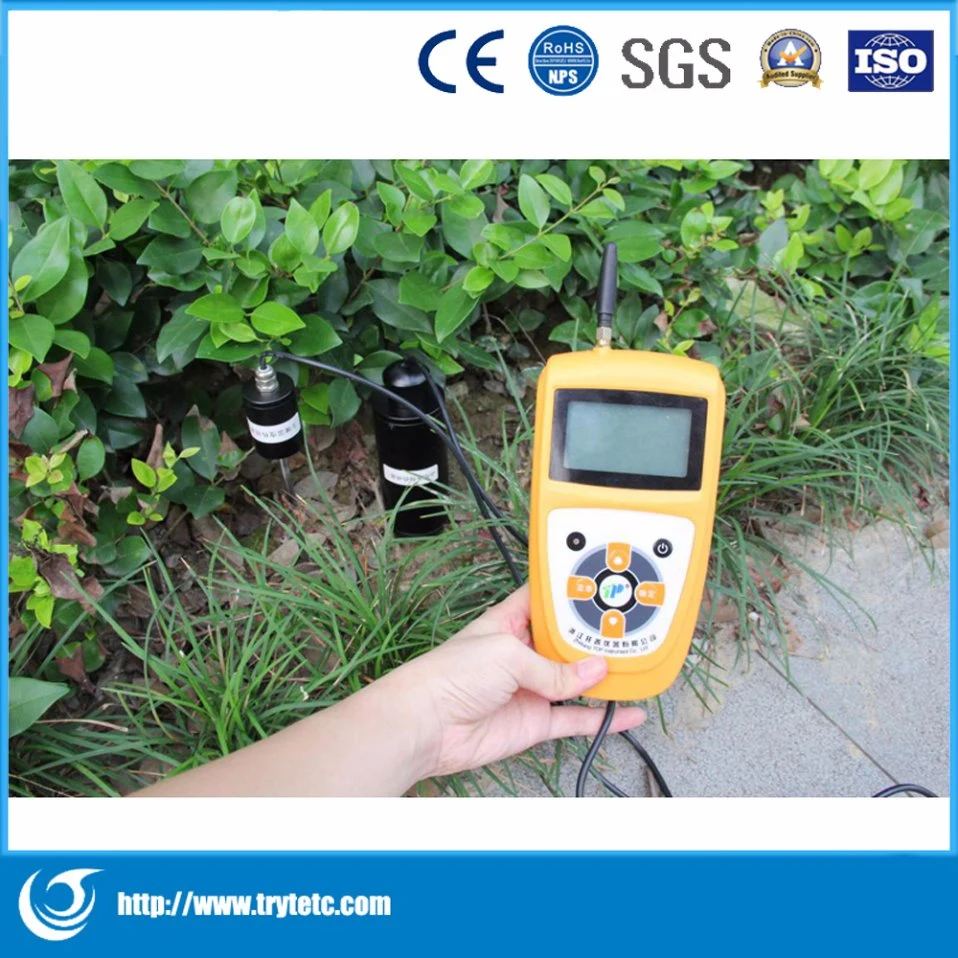

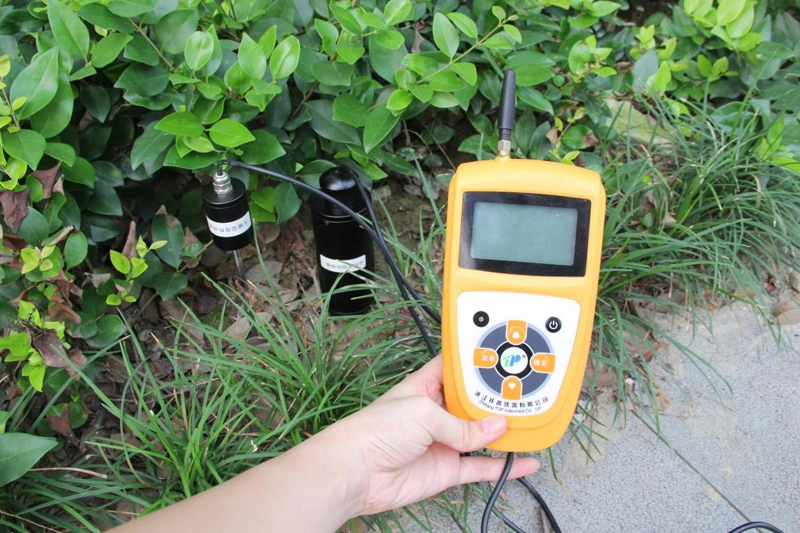

Portable Digital Soil Moisture Meter/Laboratory Instruments

Portable Digital Soil Moisture Meter/Laboratory Instruments

Model list:
ModelFunction
TRM-1K
  • Direct measure soil moisture content, and save in handset
TRM-2X
  • Measure soil moisture content, soil temperature, and save in handset
TRM-3X
  • Adding measure atmospheric temperature function based on TRM-2X
TRM-5X
  • Adding measure atmospheric moisture, dew point based on TRM-3X
Handset:
  • Small and exquisite, easy to carry and LCD display;
  • Collect settings: working unattended can be set to timing or manual collect data, recording and save data automatically;
  • Both AC and DC available, internal lithium battery: 8.4v 1500mAh, with function: charging protection, low voltage prompt. Also can be placed for a long time to record location;
  • Storage capacity: up to 30,000 groups in handset, and standard equipped with 4G Micro SD.
  • Data can be read on handset and also import to PC.
  • Power-off memory function: data already saved in SD card won't lose when lose power.
  • Probe to probe Consistency, handset can connect different kinds sensor by concentrator without influence on accuracy.
  • Auto detection: when sensors connect to handset, you can search different sensor.
  • Synchronous detection: 32 channels to detect same time as you combine.
  • RS485 wire communication, sensor communication cables could reach about 100 meters.
  • Low-power design, equipped with system monitor and protection function to avoid short circuit or interference from external.
Software:
  • Showing the curve trends of each parameter, Max, Min, and Avg. Zoom in and out function.
  • Coloring the overrun area function, make it visual display.
  • Save the data in EXCEL format as a copy.
  • Be able to view period of parameter or graph, and can be printed.
  • All curvilinear coordinates can be set and move, which make analysis easier.
Handset technical parameters:
  • Storage capacity: almost up to 30,000 groups in handset, and standard equipped with 4G Micro SD.
  • Data-collection interval: 5min~99hour
  • Working power supply: 8.4V lithium battery
  • Working current: stand-by power consumption 10mA, working power consumption according to the configuration.
Sensors technical parameters:
Soil temperature:                Atmospheric moisture:
Unit: ° C                        Range: 0~100%RH
Range: -40°C~120 °C              Accuracy: ±3%RH
Accuracy: ±0.5°C                 Resolution: 0.1%RH


Atmospheric temperature:         Dew point:
Range:-40°C~100 °C               Range: -40°C~120°C
Accuracy: ±0.4 °C                 Accuracy:  ±0.4°
Resolution: 0.1°C                 Resolution:  ±0.1°C


Soil moisture content:
Unit: %( m³)
Range: 0~100%
Response time: ≤ 2s
Relative error: ≤3%
Standard cable length: 1.5 (customized: up to 1000m)
Optional: Measuring the moisture content of Deep soil,
Soil auger is recommended.
