RIKA RK200-07 CE Certified UV Sensor Radiation For Weather Station
FEATURES
Light weight
No moving parts, no maintenance, can work in any altitude
High sensitivity
Low power consumption
Long service life
APPLICATIONS
Tourism weather
Breeding industry
Construction materials aging monitoring
Medical research
Environmental monitoring
SPECIFICATIONS
Q: Do you offer the OEM service?
A: Yes, we can offer OEM service and design the logo marking for you. But the minimum quantity is 10pcs for the first order .
Q: Do you offer free samples?
A: Sorry , we do not offer free samples . You should pay for the samples and freight cost.
Q: What payment ways do you accept?
A: You can pay us by T/T , PayPal , and West Union .
Q: What is your delivery time?
A: It is in 6-8 working days since the payment confirmed . If quantity is more than 100pcs /order, it will need extra 3-5 working days .
Q: What is your normal delivery way?
A: Goods will be sent by DHL / FEDEX / UPS / EMS / TNT / or other proposed forwarders.
Q: How is your quality assurance service?
A: Our service is free exchange within one month and 12 months quality guarantee if non-manmade damage.
Q: Could we make a visit to your factory?
A: Yes, you are welcomed . But before that, we will do the visiting investigation.

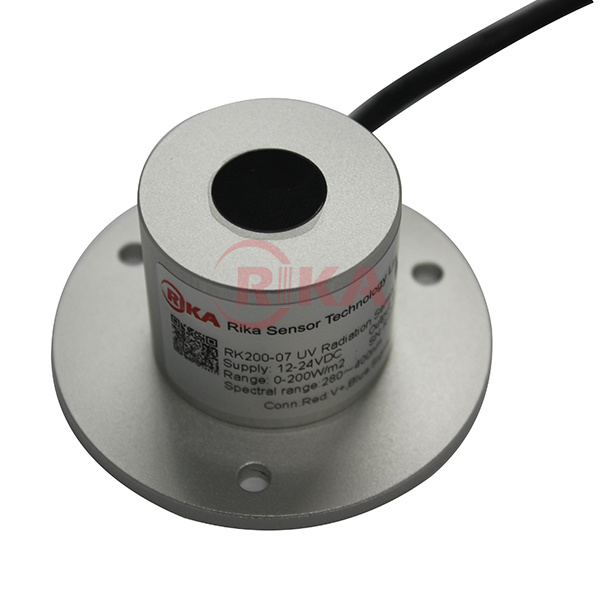

RK200-07 UV Radiation Sensor is a precision instrument used to measure the atmosphere of the sun's ultraviolet radiation (UVA & UVB),supporting the product related information acquisition instrument use can provide public concern: the UV index, UV erythema measurement, on the health effects of the UV and UV special biology and chemistry, highly meteorology, industry, construction, medical attention, are widely used in the exposure caused erythema dose, integrated environment ecological effect, the study of climate change and ultraviolet radiation monitoring and forecast.
FEATURES
Light weight
No moving parts, no maintenance, can work in any altitude
High sensitivity
Low power consumption
Long service life
APPLICATIONS
Tourism weather
Breeding industry
Construction materials aging monitoring
Medical research
Environmental monitoring
SPECIFICATIONS
| Item | SPECIFICATIONS |
| Spectral range | 280~400nm |
| Supply | 5V,12-24VDC |
| Range | 0-200W/m2, 0-200uW/cm2(only for 0-2V output), 0-15UV index |
| Output | 0-2V,4-20mA(2 wires),0-5V,RS485 |
| Accuracy | ±5% rdg |
| Response time | ≤1s |
| Cosine correction | ≤±4%(Solar elevation angle=30°) |
| Non-linear | ≤±3% |
| Temperature effect | ±0.08%/ºC |
| Stability | ≤±2%/year |
| Operating Temperature | -40ºC-+85ºC |
| Ingress Protection | IP65 |
| Weight(unpacked) | 150g |
| Shell material | Aluminum alloy |
| Storage Condition | 10ºC-60ºC@20%-90%RH |
