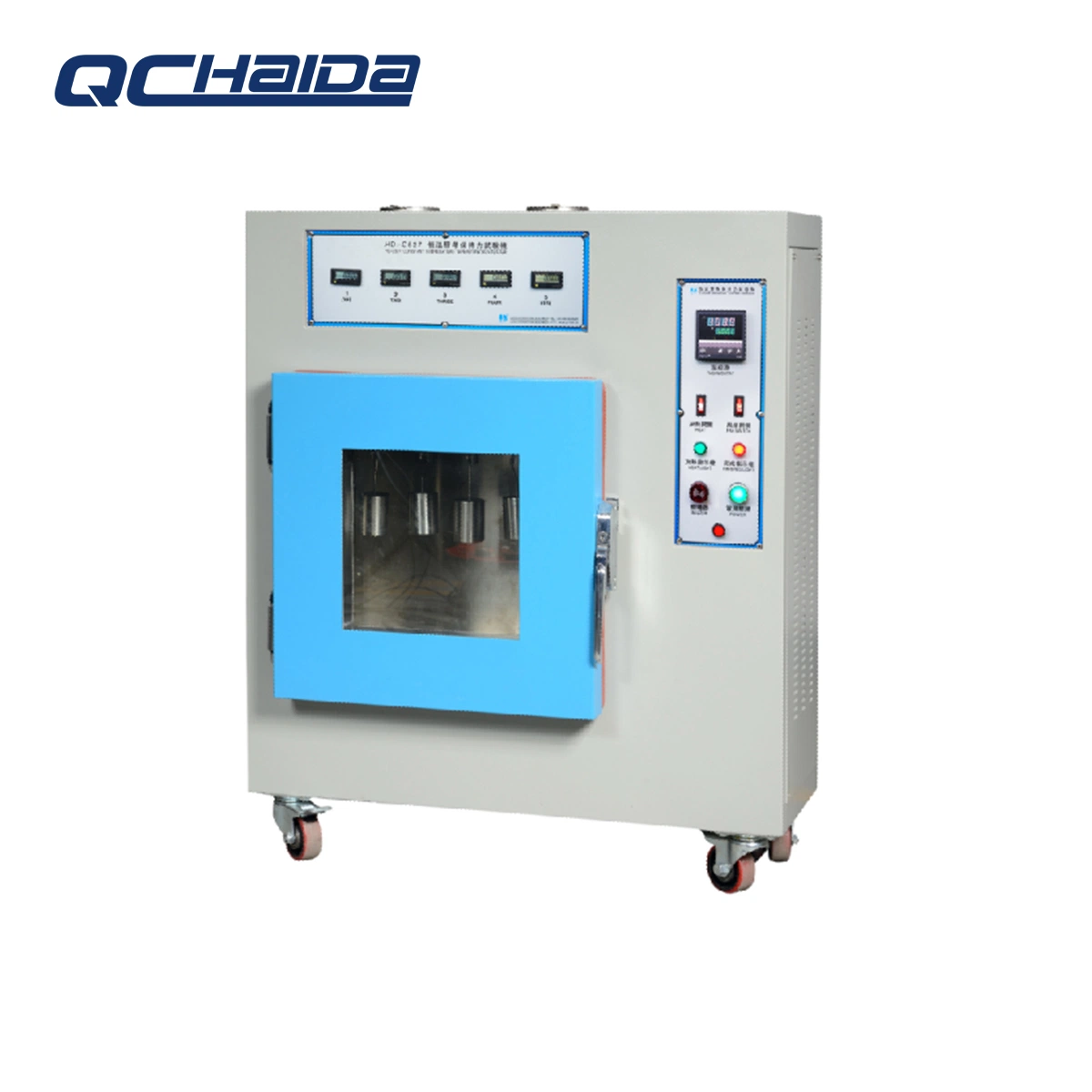

Temperature and Humidity Adhesive Tape Retentivity Tester
Product Description:

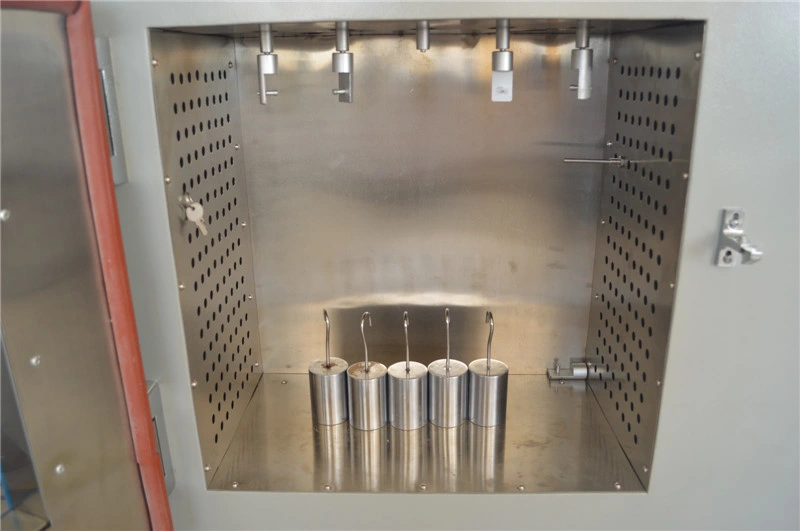

This machine is used to do static load test toward the adherence of adhesive tape, to evaluate the retentive property through timing the retentive period under regulated load and temperature. Cut a sample with length 1"and paste it to the regulated SUS#304 stainless steel panel, roll it back and forth three times at the speed of 300mm/min, with 2kg roller. Hung the steel panel on the testing machine with the regulated weight. The timer will keep the testing time when the tape takes off the panel, which is used to evaluate the adherence property of the tape.
Main Parameters:
| Item | Description |
| Thickness of testing panel | 1.5~2.0 mm, Width:40~50 mm, Length:60~125 mm |
| Roller | 2 000 g±50 g |
| Controlled Method | micro computer P.I.D automatic temperature control |
| Temperature Rang | normal temperature~200ºC |
| Temperature Displayed Accuracy | 0.1ºC |
| Temperature controlled Accuracy | ±0.3 ºC |
| Counter | 5 sets,99999.9 hours |
| Steel testing panel | 5 pieces |
| Outer size | (L×W×H) 1060×250×650 mm |
| Weight | 90kg |
HAIDA TEST EQUIPMENT TEST STANDARDS FOR SHARING
- EN 1719: Loop Tack Test
- ASTM D3654: Shear Adhesion Test
- ASTM D3759: Tensile &Elongation Test
- FTM: 180&90 Degree Peel Test, Loop Tack
- EN 1939, ASTM D3330: 180&90 Degree Peel Test
- ISO 11339, ASTM D1876, ASTM F2256: T-type Peel Test
- ASTM D903: Peel & Stripping Test
- ASTM D1002: Shear Strength (Adhesive for metal to metal)
- ISO 4587: Tensile lap-shear strength (Rigid-to-rigid bonded assemblies)
Film/Plastic Film
- ASTM D882: Tensile Test
- ASTM F1306: Puncture Test
- ASTM D1938: Trouser Tear Test
- ASTM D2732: Thermal Shrinkage Test
- ASTM D1709, ISO 7765-1: Free-Falling Dart Method
- ASTM D1894: Static and Kinetic Coefficients of Friction
- ASTM D1424, ASTM D1922, ISO 1974: Elmendorf Tearing Strength Test
- ISO 180: Izod Impact Test
- ISO 9966: Ring Stiffness Test
- ISO 179: Charpy Impact Test
- ISO 4892: Weathering Aging Test
- ASTM D3163: Plastic Lap-Shear Test
- ISO 4422, ISO 3127: Pipe Impact Test
- ASTM D4565, ISO 11357, EN 728: DSC/OIT
- ISO 75: Heat Deflection Temperature (HDT)
- ASTM D1598: Hydrostatic Pressure and Burst Test
- ISO 1133, ASTM D1238: Melt Flow Rate Test (MFR/MVR)
- ASTM D790, ISO 178, ISO 14125, ASTM D6272: Bend Test
- ISO 306, ASTM D1525: Vicat Softening Temperature (VST)
- ASTM D882, ASTM D 638, ISO 527, ASTM D1708: Tensile Test
- ASTM D412, ISO 37-2005, JIS K6251, DIN 53504-2009: Tensile Strength & Elongation Test
- ASTM D1149-07, ASTM D1171-99, ISO 7326, ISO1431-1, DIN 53509-1: Ozone Aging Test
- ASTM D624-00, ISO 34-1: Tearing strength Test
- ASTM D395-03, ISO 815-1: Compression Set Test
- ASTM D2240-05, ISO 7619-1, JIS K6253, ISO 868: Shore Hardness Type A/D
- ASTM D573, ASTM D865, ISO188 Method B, DIN 53508 High/ Low Temperature Test
- ISO 2781(Method A): Density Test
- ASTM D5289-95/ ISO6502: No-Rotor Rheometer/Curemeter
- ASTM D1646: Mooney Viscometer
Foam
- ASTM D3574 Test E, ASTM D1623, ISO 1798: Tensile Test
- ASTM D3574 Test F, ISO 8067: Tear Test
- ASTM D3574 Test A: Density Test
- ASTM D3574 Test B1, ISO 2439: IFD Test
- ASTM D3574 Test H: Resilience (Ball Rebound) Test
- ASTM D3574 Test I3: Dynamic Fatigue Test by Constant Force
- ASTM E8, EN 10002-1,ASTM A370: Tensile Test
- ASTM A370: Bend Test
- ASTM B-117, ISO 3768: Salt Spray Test
- ISO 6508: Rockwell Hardness Test
- ISO 6507: Vickers Hardness Test
- ISO 6506, ASTM E10-14: Brinell Hardness
