Cspower 12V230ah Low Price High Temperature Deep Cycle Gel Battery - Solar - Home - System - Power Station

Cspower 12V230ah Best Price High Temperature Deep-Cycle Gel Battery-Solar-Home-System-Power station details:12V 230Ah at C20battery size: L522*W240*H219*TH225mmBattery net weight: 65kg ±3%Delivery lead-time: 10-15 daysLong lifespan 20 years30% DOD 2400 times50% DOD 1500 timesWarranty: 3 years,35˚COEM brand

Featured Products


Cspower 12V230ah Best Price High Temperature Deep-Cycle Gel Battery-Solar-Home-System-Power station details:
  • 12V 230Ah at C20
  • battery size: L522*W240*H219*TH225mm
  • Battery net weight: 65kg ±3%
  • Delivery lead-time: 10-15 days
  • Long lifespan 20 years
  • 30% DOD 2400 times
  • 50% DOD 1500 times
  • Warranty: 3 years,35˚C
  • OEM brand service free charge
  • Customized color service when 300 pieces
  • Certifications: IEC60896-21/22, CE, ISO, UL
  • Work temperature: -20 to 60˚C
  • High capacity Solar battery, High temperature Long Life VRLA, gel, computer back up power, solar, wind and margin power system especially for solar home system.Cspower 12V230ah Best Price High Temperature Deep-Cycle Gel Battery-Solar-Home-System-Power Station
Cspower 12V230ah Best Price High Temperature Deep-Cycle Gel Battery-Solar-Home-System-Power station Uses and maintenance:
  • Use constant-voltage charge
  • In floating charge, voltage is 2.23 to 2.27 per unit cell
  • In cycle use, voltage is 2.35 to 2.45 per unit cell and max
  • Current is no more than 25% * C
  • Do tighten the bolts to avoid sparkle and poor contact when the battery is in use
  • Do not use it near heat source and open flame
  • Keep it at low temperature
  • Change it while there is liquid leaking or damage
    HTL12-230
    Nominal Voltage 12V (6 cells per unit)
    Design Floating Life @ 25ºC 20 Years
    Nominal Capacity @ 25ºC 20 hour rate@ 21.0A, 5.4V230Ah
    Capacity @ 25ºC10 hour rate (37.8A, 5.4V) 208Ah
    5 hour rate (66.8A, 5.25V) 175Ah
    1 hour rate (233.3A, 4.8V) 127.1Ah
    Internal Resistance Full Charged Battery@ 25ºC ≤2.7mΩ
    Ambient TemperatureDischarge -25ºC~60ºC
    Charge -25ºC~60ºC
    Storage -25ºC~60ºC
    Max.Discharge Current@ 25ºC 1320A(5s)
    Capacity affected by Temperature (10 hour )40ºC 108%
    25ºC 100%
    0ºC 90%
    -15ºC70%
    Self-Discharge@25ºCper Month 3%
    Charge (Constant Voltage) @ 25ºCStandby Use Initial Charging Current Less than 50A  Voltage 13.6 - 13.8V
    Cycle UseInitial Charging Current Less than 50A  Voltage 13.6 - 13.8V
    Dimension (mm*mm*mm)Length 522±1 * Width 240±1 * Height  219±1 (Total Height 225±1)
    Weight (kg) 65.2±3%
Cspower 12V230ah Best Price High Temperature Deep-Cycle Gel Battery-Solar-Home-System-Power station Applications:
  • Solar and wind power systems
  • Marine equipment
  • Home solar energy system
  • Fire and security systems
  • Uninterruptible power supplies
  • Golf cart, electric vehicle, electric powered bicycle and wheelchairs
  • Communication equipment
  • Power tools and telecommunication systems
  • Urgent light systems
  • Measurement systemsCspower 12V230ah Best Price High Temperature Deep-Cycle Gel Battery-Solar-Home-System-Power Station
Cspower 12V230ah Best Price High Temperature Deep-Cycle Gel Battery-Solar-Home-System-Power station

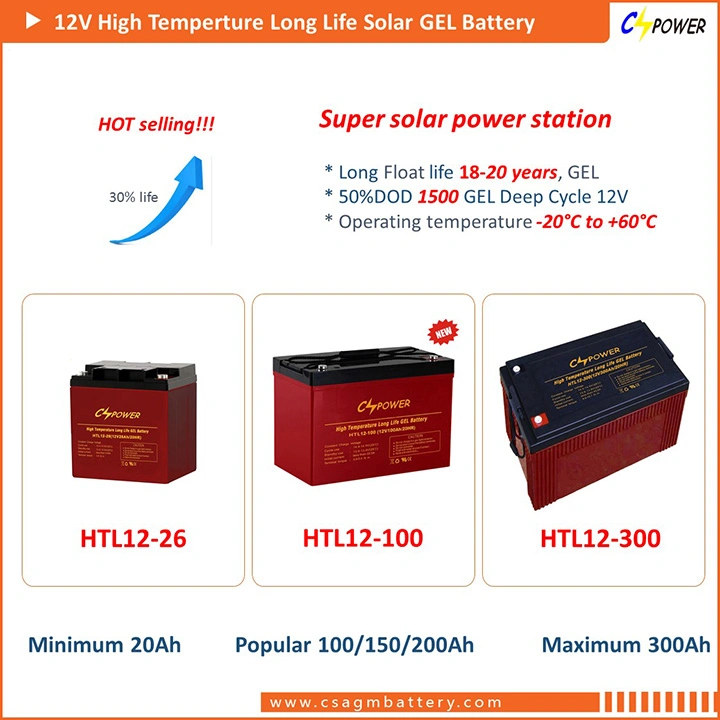

  • 12V 14Ah up to 300Ah
CSPOWER MODELVoltageCapacityDimension (mm)Weight (kg)
(V)(Ah)LengthWidthHeightTotal Height(±3%)
HTL12-14121415299961023.8
HTL12-201220181771671676.0
HTL12-2412251661751261268.3
HTL12-2612251651261741798.4
HTL12-35123519613015516710.5
HTL12-40124019816617417414.2
HTL12-55125522913820821216.0
HTL12-70127035016717817823.3
HTL12-75127526016920822725.0
HTL12-85128526016920822726.1
HTL12-90129030716921121628.2
HTL12-1001210030716921121630.2
HTL12-1101211033117421422033.3
HTL12-1201212040717321023339.2
HTL12-1351213534417228028540.8
HTL12-1501215048417124124145.5
HTL12-1801218053220621622256.0
HTL12-2001220053220621622258.4
HTL12-2301223052224021922565.0
HTL12-2501225052026822022671.0
HTL12-3001230052026822022677.0
HTL6-200620030616822022230
HTL6-210621026018024724929.5
HTL6-220622030616822022231.5
HTL6-225622524318727527530.5
HTL6-310631029517834636646
HTL6-330633029517835436046.6
HTL6-380638029517840441055.3
HTL6-420642029517840441056.8

CSPOWER 12V Solar deep cycle GEL battery applications:
Communication equipment, Telecommunication control equipment;
Emergency lighting systems;
Electric power systems; Power station; Nuclear power station;
Solar powered and wind powered systems;
Load leveling and storage equipment;
Marine equipment; Power generation plants; Alarm systems;
Uninterruptible power supplies and stand-by power for computers;
Medical equipment;
Fire and security systems; Control equipment; Stand-by electric power


CSPOWER 12V deep cycle GEL battery certification:

With the continuous innovation and pursuit of perfection, CSPOWER has own professional Quality Management System since established. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognitions, like UK's IEC, CE authentication of the European Union, RoHS, ISO9001, and TLC certificates in China.
Cspower 12V230ah Best Price High Temperature Deep-Cycle Gel Battery-Solar-Home-System-Power Station
CSPOWER 12V deep cycle GEL battery production process:
1) Nearly 13 years leading manufacturer,established in 2003. Factroy size: 50000 square meter
2) Strict management system and quality control, 100% inspection.Factories are satisfied with ISO 9001 & ISO
14001, products with CE/RoHS/TLC etc approval.
3) A professional experienced team to provide you high-quality service.All enquires will be replied in 24 hours.
4) Competitive price help you  to occupy more market share
5) 20000KWH production capacity to guarantee the best deliver time
6) 1-3 years warranty policy, up to now, our product defective rate is under 0.4%.


Cspower 12V230ah Best Price High Temperature Deep-Cycle Gel Battery-Solar-Home-System-Power Station
CSPOWER 12V
deep cycle GEL battery quality control:
CSPOWER BATTERY TECH CO.,LTDWith more than 16years experience, advanced technology and equipments, CSPower dedicates in the design, development and production of high quality lead acid battery for various marketincluding Solar, UPS, Telecom, Electricity, etc. Its market covers nearly 168 countries and regions either by its own brand "CSpower" or by OEM business. Located in a world-class, modern industrial park of 50, 000 square meters in Guangdong, China, CSPOWER's top of line facilities produce an annual capacity of approximately 2kk KVAh, to create more than 130million US Dollars annual turnover.
CSPOWER Battery factory pictures sharing
Cspower 12V230ah Best Price High Temperature Deep-Cycle Gel Battery-Solar-Home-System-Power Station
CSPOWER
deep cycle GEL battery Shipment:

CSPower has a strong partnership with many famous customers all around the world,including Wal-Mart,ZTE,APC,Eaton,Delta and Huawei. Our batteries have beenwidely used in many electrical sectors such as Solar&Wind, Banks, Oil & energy, power grid, telecommunication, medical treatment, education, transportation, etc.
we have exported to over hundreds of countries such as: USA, Brazil, Italy, Greece, Germany, Spain, Russia, Iran, Korea, Thailand, South Africa, Nigeria, etc.

Cspower 12V230ah Best Price High Temperature Deep-Cycle Gel Battery-Solar-Home-System-Power Station
Why choose CSPOWER:
* We do much better on cost than other Chinese suppliers for over 14years,  we produce battery lead plates  by ourself;
* We never use recycle lead, all our lead plates use 99.997% pure new lead;
* We never use recycle plastic particles, Housing/Cover: Made of UL94HB and UL 94-0ABS Plastic, fire resistance and water proof;
* We gurranty less than 0.3% defective rate in 3years, much lower defective rate than most other suppliers.
* Strict management system and quality control, our quality accepted by SGS strict inspection.
Fast delivery 15~20days, never delay shipment.
* We are sincerely for customers. All of our batteries are 100% sufficient capacity.
* Free OEM service to support our customers, Flexible cooperation, welcome to become our agent.
