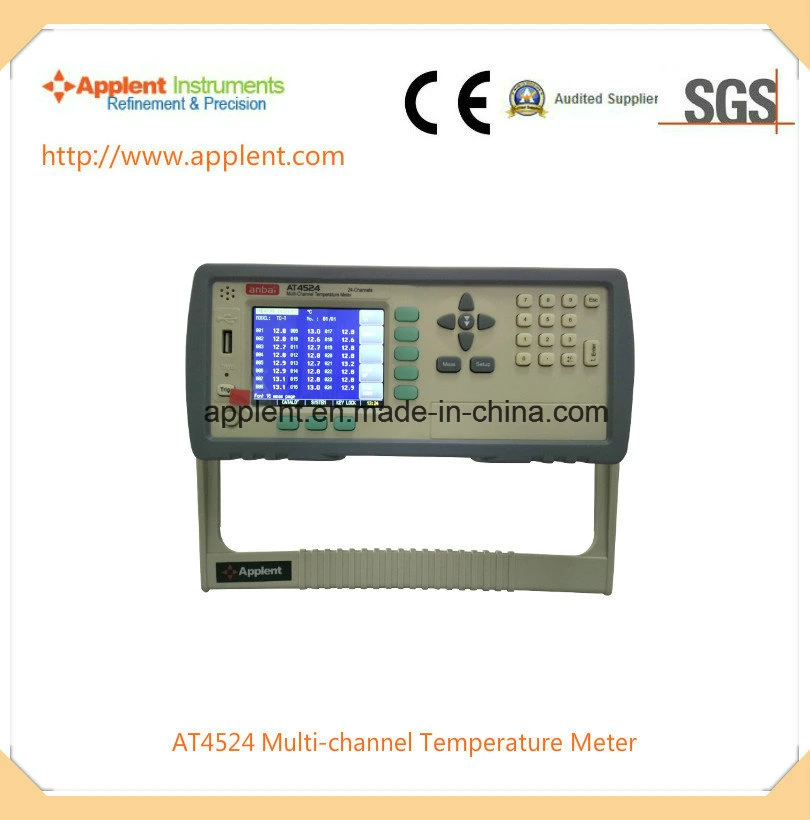

| AT45xx series multi-channel temperature meter adopt high-performance ARM micro processor, can collect multi-channel temperature data simultaneously and response quickly. AT45 series have the function of checking broken thermocouple, high/low beep function and communication transmission. 128 channels' temperature data can be extended, compatible with various temperature sensors. Support RS-232 communication, realize data acquisition, analysis and print through the standard computer software. Has USB disk storage and store real-time sampling data. The users can adjust data for each channel independently. | |||||||
| SPECIFICATIONS | |||||||
| AT4508 | AT4516 | AT4532 | |||||
| Graduation | Thermocouple:J/K/T/E/S/N/B/R | ||||||
| Accuracy | 0.2%+1ºC | ||||||
| Measurement Range | -200°C~1300°C(Varying depend on graduation) | ||||||
| Resolution | 0.1ºC | ||||||
| Channels | 8 channels; 128 channels are available | 16 channels; 128 channels are available | 32 channels; 128 channels are available | ||||
| Speed | Fast:100ms/channel Medium:500ms/channel Slow:1s/channel | ||||||
| Correction | Error correct for each channel | ||||||
| Comparator | High/low beep Individual setting high/low value for each channel | ||||||
| Interface | RS232C interface U-disc interface USB communication interface | ||||||
| Software | ATS45 data acquisition software | ||||||
| Cold Junction Compensation | Accuracy:0.5ºC | ||||||
| Others | TFT-LCD True-color LCD display,broken thermocouple check function | ||||||
| GENERAL FEATURES | |||||||
| Power Supply | Voltage:85VAC~260VAC Frequency:50Hz/60Hz Power:10VA | ||||||
| Size | 216mm(Width)x88mm(Height)x300mm(Depth) 3kg | ||||||
| ORDERING INFORMATION | |||||||
| Accessories | AT4508: K Type thermocouple 8 teams(2m/team) AT4516: K Type thermocouple 16 teams(2m/team) AT4532: K Type thermocouple 32 teams(2m/team) | ||||||
2. Company Profile and the main advantages
Changzhou Applent Instruments Inc. was established in 2005, named Applent Technology. In 2009, Applent Technology renamed Applent Instruments Inc. With strong technical team, Applent focus on designing, researching and developing, manufacturing and selling all kinds of electrical meters, such as Precise Resistance Meters, DC Resistance Meters, LCR Digital Electric Bridges, Insulation Resistance Meters, etc.
The main advantages:
A we have strong technical team and focus on designing,researching and developing
B we manufacture and sell all kinds of electrical meters, such as Precise Resistance Meters, DC Resistance Meters, LCR Digital Electric Bridges, Insulation Resistance Meters, etc
C we have a lot of agents all over China and USA Office. Professional people offer specialized technical support.
OEM Available
We are looking for distributors and agents from all over the world.
Welcome to contact:
Tel: +86 0519-88805550
Mobile: +86 13861036573
