I Introduction
AST3005 Digital Temperature Gauge is a new ultra low power consumption smart digital temperature measuring instrument. It uses the latest ultra-low power consumption processor and special driver software. Cooperate with RTD sensors, it can measured the temperature value accurately. The product blend a number of advanced electronic technology and Antiinterference techniques,etc.,to ensure that the product has advantages of high measure precision,strong antijamming performance, superior protection performance, simple operation and wide application.
Application
This product choose stainless steel shell, and has small volume , light weight . In addition , it has low power consumption, and works reliably, easy to operate. It is very suitable for high precision temperature measurement, and it can be used to industrial control front-end with special interface. Therefore, this product can be widely used in petroleum,plastics,rubber,printing and dyeing, textile and other industries automation control occasions which need measure temperature.
II Specifications
III Structure
IV Ordering Information
FAQ:
1. Q: Are you manufacturer or trading company?
A: We are A professional manufacturer of Pressure/Temperature sensor, wireless transmitters,even total solutions of IIOT for more than 11 years in China. With 4~20mA, Hart, Rs485 & Modbus protocols, pressure sensors with 4~20mA, 0.5~4.5V, UARTand etc, also wireless IOT measurement transmitters. We provide high quality products with high competitive factory price.
2. Q: What's your quality control system?
A: As an ISO9001:2008 certificated manufacturer, we have strict quality control system, and each product is done fatigue testing, calibration, temperature compensation before shipment. High quality is guaranteed.
3. Q: Is there MOQ with your product?
A: We have no MOQ limits, 1pc for testing is acceptable.
4. Q: Do you provide customized products?
A: Yes, we can print your logo on our products; OEM, ODM & customization are welcomed.
5. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 12 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
6. Q: What is lead time of your product?
A: We are factory, our lead time is always within 10~15 working days for products without customization, but lead time will vary based on different products. You can check detail lead time with our sales.
7. Q: What international certificates do you have for your products?
A: we have gained CE, RoHs certificates, and are in the process of gaining ATEX & UL certificates now.
AST3005 Digital Temperature Gauge is a new ultra low power consumption smart digital temperature measuring instrument. It uses the latest ultra-low power consumption processor and special driver software. Cooperate with RTD sensors, it can measured the temperature value accurately. The product blend a number of advanced electronic technology and Antiinterference techniques,etc.,to ensure that the product has advantages of high measure precision,strong antijamming performance, superior protection performance, simple operation and wide application.
Application
This product choose stainless steel shell, and has small volume , light weight . In addition , it has low power consumption, and works reliably, easy to operate. It is very suitable for high precision temperature measurement, and it can be used to industrial control front-end with special interface. Therefore, this product can be widely used in petroleum,plastics,rubber,printing and dyeing, textile and other industries automation control occasions which need measure temperature.
II Specifications
| Power Supply: | 2 AA batteries |
| Operating temperature: | -25~60 ºC |
| Range: | Range: -200~400ºC(Pt100) |
| Accuracy grade: | 0.2%F.S |
| Process Connection: | M20×1.5,M27×2,G1/2, NPT1/2 , etc. |
| Relative humidity: | <95% |
| LCD Display: | 5 bits LCD |
| Temperature unit: | Menu to choose |
| Size: | 100*40mm |
| Measuring Media: | Solid surface, Liquid,Gas |
| IP grade: | IP54 |

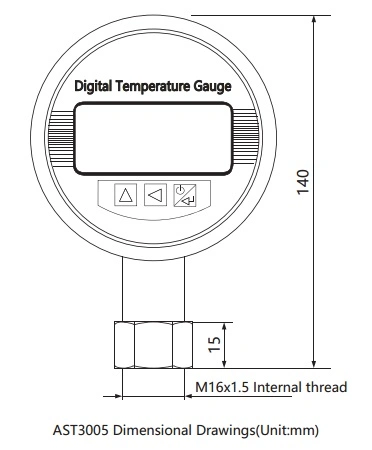

III Structure
IV Ordering Information
| Code 1 P100 | Sensor Input Pt100 |
| Code 2 Q1 Q2 Q3 Q4 Q5 Q6 Q9 | Measuring Range 0~100ºC 0~150ºC 0~200ºC 0~250ºC 0~300ºC 0~350ºC Customized |
| Code 3 C1 C2 C3 C49 | Protecting tube Material 321 304 316 Customized |
| Code 4 D1 D2 D9 | Protecting tube Diameter Φ12 Φ16 Customized |
| Code 5 U1 U2 U3 U4 U5 U9 | Sheathed tube Diameter Φ3 Φ4 Φ5 Φ6 Φ8 Customized |
| Code 6 L1 L2 L3 L4 L5 L6 L9 | Sensor Insert depth 80mm 100mm 150mm 200mm 300mm 500mm Customized |
| Code 7 G1 G2 G3 G4 G5 G9 | Process Connection Thread No Thread M20×1.5 M27×2 G1/2 NPT1/2 Customized |
| Ordering Example: AST3005-P100 Q1 C2 U4 L3 G3 [P100]: Sensor input: Pt100 [Q1]: Range: 0~100ºC [C2]: Protecting tube Material: 304 stainless steel | [U4]: Sheathed tube Diameter: Sheathed RTD used, Sheathed tube Diameter:6mm [L3]: Sensor Insert depth: 150mm [G3]: Process Connection Thread: M27×2 |
