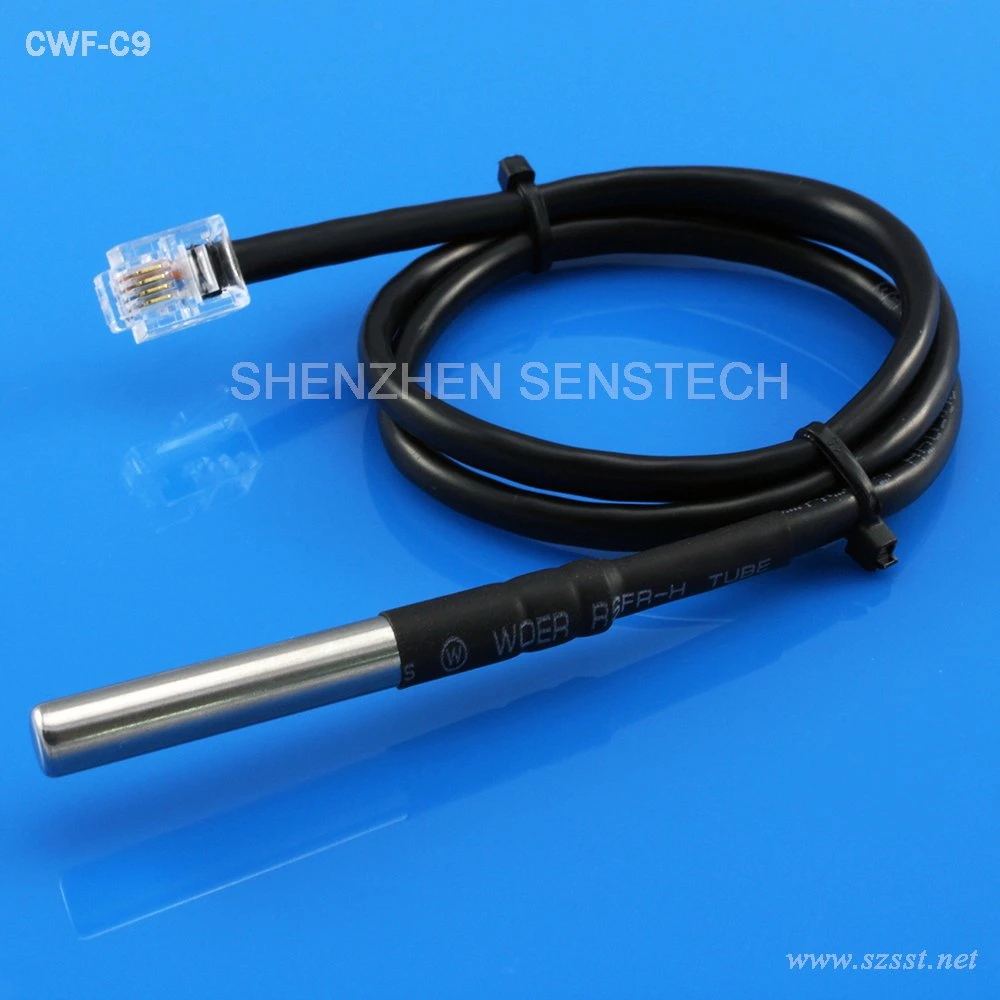

Waterproof DS18B20 Temperature Sensor Probe 6*50mm is a digital thermo probe or sensor that
employs DALLAS DS18B20.Its unique 1-wire interface makes it easy to communicate with devices.
It can converts temperature to a 12-bit digital word in 750ms (max). Besides, it can measures
temperatures from -55°C to +125°C(-67F to +257F).
In addition, this thermo probe doesn't require any external power supply since it draws power from
data line.Last but not least, like other common thermo probe, its Stainless steel probe head makes
it suitable for any waterproof or wet environment.
| L1 | 25mm;30mm;45mm;50mm;100mm or to be advised by customer | ||||||||
| L2 | 1M;2M;3M;5M;6M;10M;15M or to be advised by customer | ||||||||
| OD | 6mm or to be advised by customer | ||||||||
| Waterproof DS18B20 temperature sensor | |||||||||
| Probe | Metal, Plastic; bullet type, cylinder type, surface mounting type, screw type, Epoxy resin, plastic overmolding, flange type, clamp type, various coating configurations and shell materials are available | ||||||||
| Cable | TPE /PVC/Silicone cable 1m, 2m, 3m, 5m, 10m, 15m or Customized | ||||||||
| Connector | TJC3 2.54, SMR, SMP, 5566, PH, EH, 557, YC8, YC9, M6, M8, M10. M12, M16, RJ11, RJ12, RJ45, RJ50, 3.5mm Jack | ||||||||
Cable specs:
- Cable is 36",100cm;2M;5M,it is upon customer requirement, OD3.5mm or OD5mm
- Cable materials: PVC;TPE; Silicone; Stainless steel braided; PTFE;Teflon..etc
- 3.5mm plug connection is upon your requirement,normally Pin1-VCC;Pin2-DQ;Pin3-GND;
DS18B20 Technical specs:
- Usable temperature range: -55 to 125°C (-67°F to +257°F)
- 9 to 12 bit selectable resolution
- Uses 1-Wire interface- requires only one digital pin for communication
- Unique 64 bit ID burned into chip
- Multiple sensors can share one pin
- ±0.5°C Accuracy from -10°C to +85°C
- Temperature-limit alarm system
- Query time is less than 750ms
- Usable with 3.0V to 5.5V power/data
Q: Are you trading company or manufacturer ?
A: We are a manufacturer of temperature sensors, and we have 19 years production experience.
Q: How long is your lead time?
Q: How long is your lead time?
A: Generally it is 2-3 weeks for ordinary products. For custom-made types, it might be 3 to 4 weeks
for initial order.
Q: Do you provide samples ? is it free or extra ?
for initial order.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free if we have in stock, but we do not cover shipping cost.
Q: What is your terms of payment ?
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% T/T in advance. Payment>3000USD, 30% deposit in advance ,balance
before shippment.If you have any other question,pls feel free to contact us.
before shippment.If you have any other question,pls feel free to contact us.
