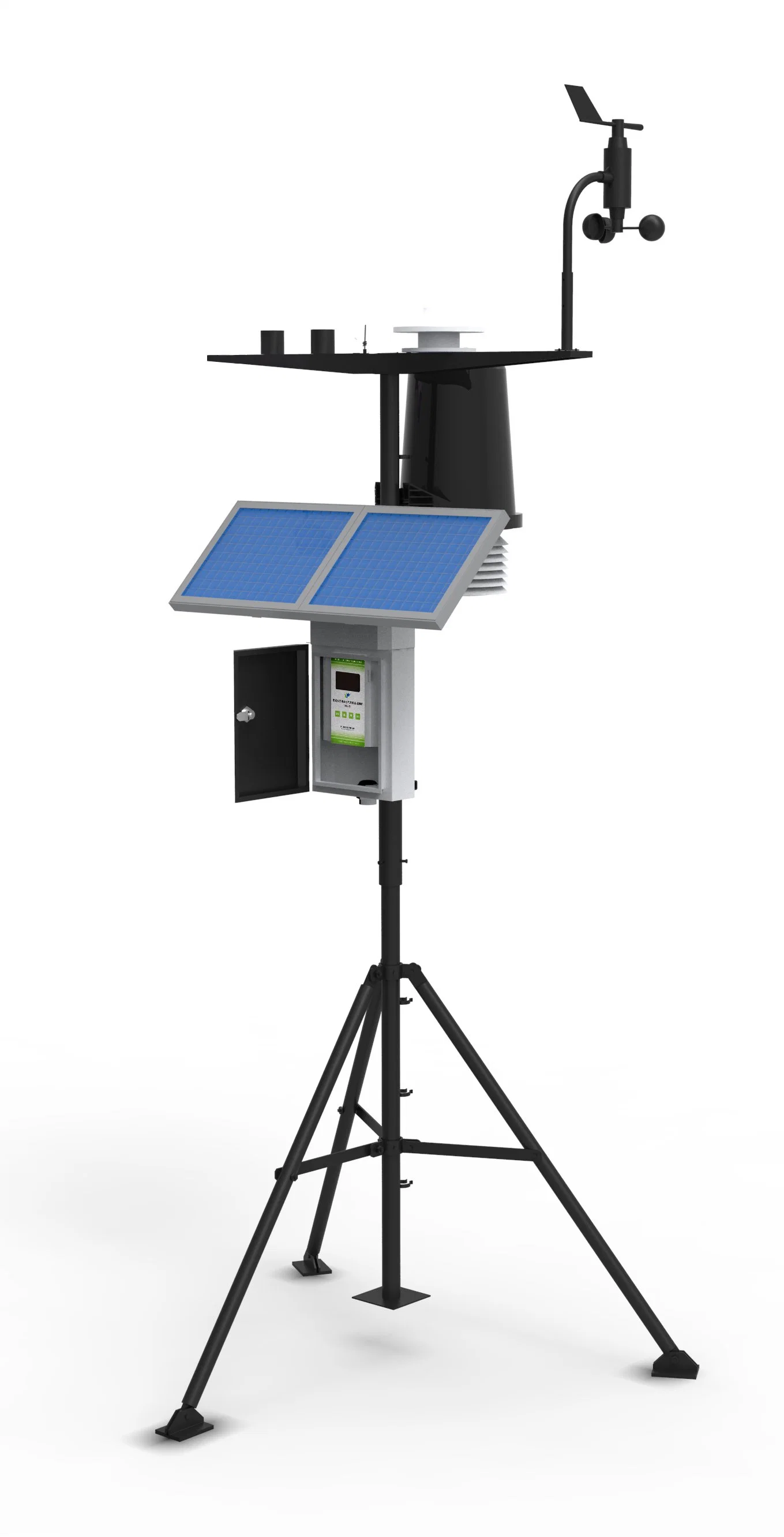

Wireless GPRS Automatic Weather Station with APP Cloud Platform
Wireless Microclimate information collector system /Weather Station with GPRS adopts GPRS or GSM for long distance data transmission. Though this way, Users are allowed to check data on any computer under steady and reliable conditions. The system is able to acquire air temperature, humidity, illumination, Wind direction and speed, rainfall, soil temperature, and soil moisture, etc. It is widely used in facilities agriculture, forestry, horticulture, animal husbandry, and other fields, and it fulfills to carry out conduct of automatically monitor, automatic control and intelligent management to the facilities for comprehensive agricultural ecological information.Characteristic:
- Big LCD screen, film-style keypad, can display real-time sampling date and time (year, month, date, minute and second), groups, temperature, humidity, illumination, Wind direction and speed, rainfall and other parameters, Apparatus compact beautiful and very convenient . (Accord to the user's requirements to increase and change measuring parameters, such as: PAR radiation, wind direction and speed, rainfall, soil water potential, soil PH, EC soil conductivity, etc.).
- Users are able to select GPRS mode or SMS GSM mode to transmit data and export it to any required computer or mobile.
- Optional function: GPRS. Users are able to check the longitude and latitude.
- User settings himself, can be demanded the closure of the parameters do not need access.
- Automatically collect various kinds of parameters datum, datum can be passed through the interface software (for free) to download to your computer.
- Be able to shown the all the parameters of the visual data measured in the form of chart and curve to the user.
- Alarm function working
- Software upgraded available.
- Strongly expanded: procedures modular system structure and function to facilitate expansion or shielding.
Standard Sensors are:
- Temperature and Humidity;
- Illuminaiton;
- Rainfall;
- Wind speed and Direction;
- Soil moisture and temperature
Technical Parameters of the controller:
Solar power supply: 10WP
Standby power: DC-9V/ 1A
Watt: ≤ 1.5W
Capacity: 1M (local storage) + 4G (SD CARD)
Waterproof rate: IP54
| Testing index | Parameter | Testing index | Parameter |
| Temperature | range:-40°C-80°C accuracy:±0.4°C resolution:0.1°C | Rainfall | range:0-4mm/min accuracy:±0.1mm resolution:0.1mm |
| Humidity | range:0-100%RH accuracy:±3%RH resolution: 0.1%RH | CO2 | range:0-2000PPM Volatility:±(50PPM+ Measurements×3%) resolution:1PPM |
| Dew Point | range:-40°C-120°C accuracy:±0.4°C resolution:0.1°C | Illuminance | range: 0-200000LUX accuracy:±2% (0-20000lux) resolution: 1LUX |
| Soil salinity | range: 0-19.99ms/cm accuracy: ±2% | Soil Temperature | range:-40°C-100°C accuracy:±0.3°C resolution:0.1°C |
| Soil compaction | range:0-100kg accuracy:±0.5‰ F.S | Soil Moisture | range:0-100% accuracy: ±3% resolution:0.1% |
| PAR radiation | range:1-2,700µmolm-2s-1 accuracy:±1µmolm-2s-1 resolution:1µmolm-2s-1 | Soil pH | pH range: 1-14pH pH accuracy: ±0.5 |
| Wind Direction | range:0-359° accuracy:±3° | Wind Speed | range:0-45m/s accuracy:±(0.3+0.03v)m/s |
| Air pressure | range: 300.0hPa~1100.0hPa Accuracy: ±1hPa | Global solar radiation | range: 0-2000W/m2 Accuracy: ±5% |
| Water vaporization | range: 0~100mm Accuracy: 0.1mm | UV radiation | range: 0~6mW/cm2 Accuracy: ±5% (0~3mW/cm2) |
